Case Antenna Series

Golden Retriever

Golden Retriever

  • 698–3800 MHz
  • 5G
  • MIMO LTE
  • MIMO WiFi
  • GPS

Configurations: 5:1 and 3:1

This portable IP67-rated case antenna is designed for high performance during adverse conditions and is portable in case of emergency.

BEAGLE 5

Beagle

  • 698–5925 MHz
  • 5G
  • 2×2 MIMO Cellular
  • 3×3 MIMO Wi-Fi
  • GPS

Configurations: 6:1, 5:1

The Beagle is case antenna is configurable up to 6 in 1 with potential for 2X2 MIMO Cellular, 3X3 MIMO Wi-Fi and GPS/GNSS.

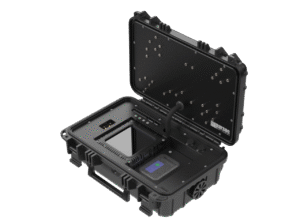

boxer - 9 in 1 - d2

Boxer

  • 617–5925 MHz
  • 5G
  • 4X4 MIMO Cellular
  • 4X4 MIMO Wi-Fi
  • GPS

Configurations: 7:1, 8:1, 9:1

The Boxer case antenna is configurable up to 9 in 1 with potential for 4X4 MIMO Cellular, 4X4 MIMO Wi-Fi and GPS in a compact rugged design.

St. Bernard

St. Bernard

  • 617–5925 MHz
  • 5G
  • 4X4 MIMO Cellular
  • 4X4 MIMO Wi-Fi
  • GPS/GNSS
  • CBRS, CAT18

Configurations: 9:1

The St. Bernard case antenna is configurable up to 9 in 1 with potential for 4X4 MIMO Cellular, 4X4 MIMO Wi-Fi and GPS/GNSS.

Bernese Mountain Dog

Bernese Mountain Dog

  • 617–5925 MHz
  • 5G
  • 6X6 MIMO Cellular
  • 2X2 MIMO Wi-Fi
  • GPS

Configurations: 9:1

The Bernese Mountain Dog supports the simultaneous operation of two separate Cellular modems, one with 4×4 MIMO and one with 2×2 MIMO.

Bloodhound case antenna

Bloodhound

  • 617–5925 MHz
  • 5G
  • Up to 8X8 MIMO Cellular
  • 4×4 MIMO Wi-Fi
  • GPS/GNSS

Configurations: 13:1, 9:1 and 5:1

The Bloodhound is configurable as a standard antenna only format, or a fully dressed out and ready for deployment version that includes a router baseplate, cover and cable management already installed.

bloodhound r19d (4)

Bloodhound R19D

  • 617–5925 MHz
  • 5G
  • 8X8 MIMO Cellular
  • 2×2 MIMO Wi-Fi
  • GPS/GNSS

Configurations: 12:1

The Bloodhound R19D case antenna is a 5G, emergency mobile hot spot designed to provide on-the-go network solutions in areas where cellular infrastructure may be compromised. This case antenna provides full use of the 5G 600 MHz to 6 GHz spectrum for first responders, critical communications, surveillance, covert operations, and more.

Bloodhound

Newfoundland

  • 617–5925 MHz
  • 5G
  • CBRS
  • Up to 8X8 MIMO Cellular for dual SIM’s
  • 4X4 MIMO Wi-Fi
  • GPS

Configurations: 13:1, 9:1 and 5:1

The Newfoundland is available with up to 2 sets of 4X4 MIMO Cellular (primary/failover), 4X4 MIMO WIFI, and GPS. Capable of the simultaneous operation of two separate cellular modems.

Case Antennas

Parsec takes mobile and emergency communications to new levels! Parsec’s line of mobile case antennas are high performance, rugged antennas built into the lid of protective, portable, tamperproof cases. These case antennas are ideal for mobile network in a box deployments, emergency communications, wireless internet backup and failover applications.



These case antennas make building out and deploying your office in a box solution even easier, with the guaranteed high performance you will find in all of Parsec’s antennas.



Click here for our Parsec case antenna to router match-up guide to help you select which case or router you need.

  • Mobile / Portable
  • Superfast data transmission speeds
  • Rugged, tamper resistant housing
  • 600 MHz-6 GHz operation
  • CBRS / PLTE
  • High-performance, high-efficiency, rugged antennas
  • IP67 rated
