Bernese Mountain Dog

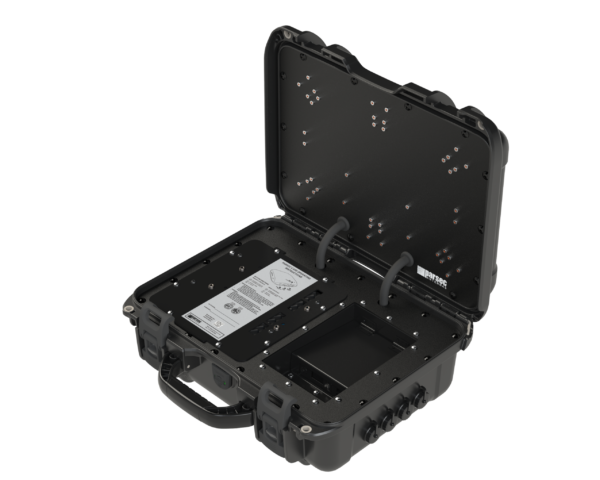

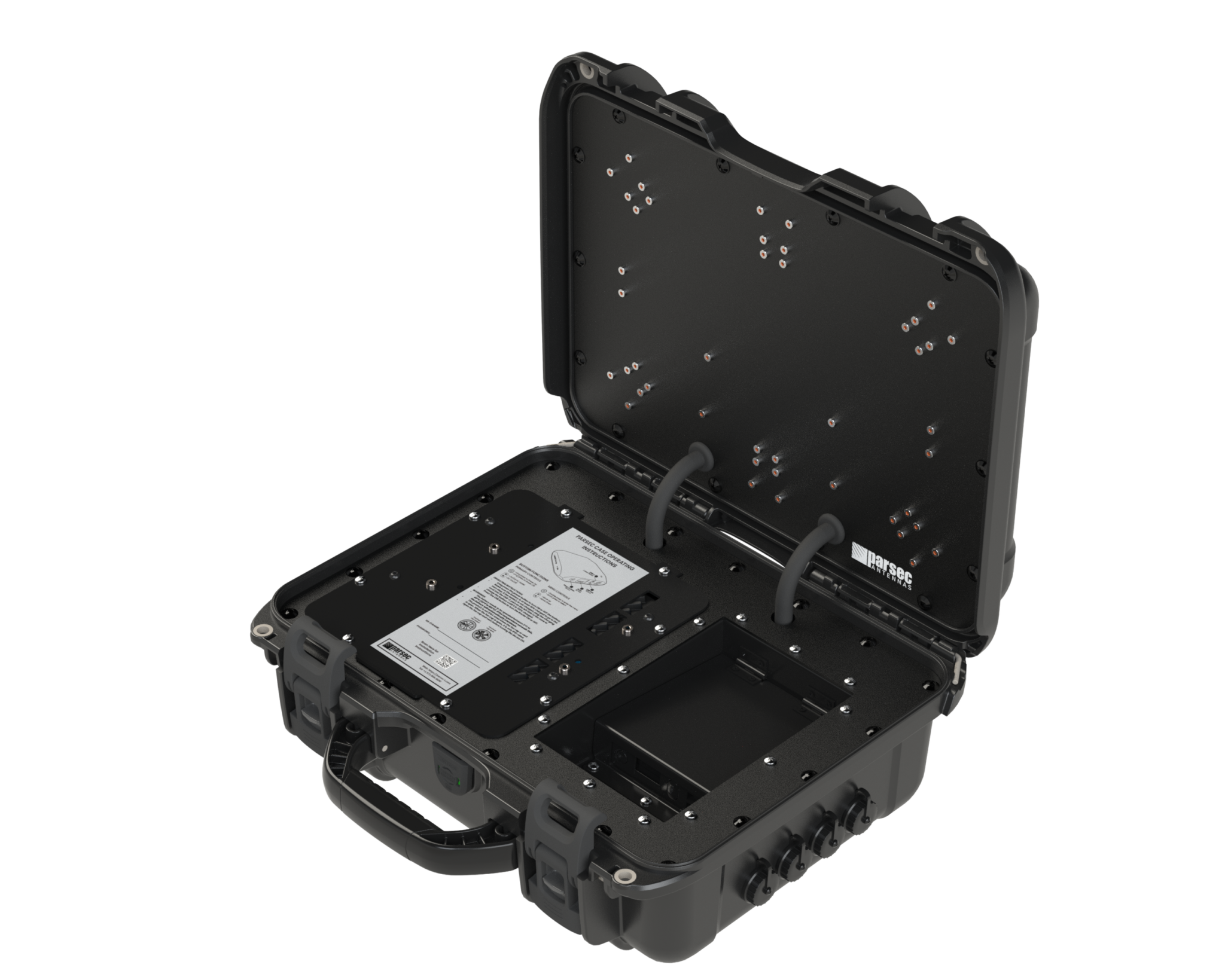

Parsec’s Bernese Mountain Dog Series is a low profile 5G antenna with four element 4X4 MIMO LTE, an additional and separate two element MIMO LTE, two element MIMO Wi-Fi, and GPS fully contained in the lid of a customizable waterproof box.

The Bernese Mountain Dog supports the simultaneous operation of two separate LTE modems, one with 4×4 MIMO and one with 2×2 MIMO. This rugged low-profile omni-directional antenna works on all the common North American LTE bands with high efficiency. Also supports CBRS and LAA.

See Specifications for part numbers.

View Specifications

Additional information

Features

LTE Frequency Range:
617– 894 MHz
1710 – 2700 MHz
3400 – 3800 MHz (CBRS)
5150 – 5925 MHz (LTE LAA)
WiFi Frequency Range:
2400–2483.5 MHz
4900 – 5900 MHz

5G
WIFI 6
High Isolation
Low Height

Applications

Mobile / Portable Communications
Emergency Communications
Wireless internet access for primary
Fail over connectivity
