Newfoundland

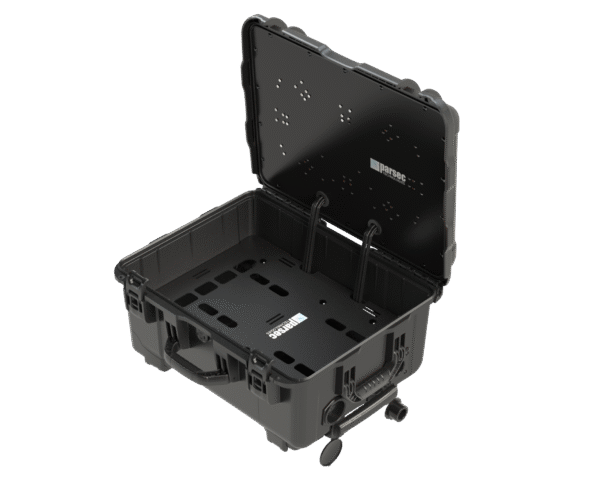

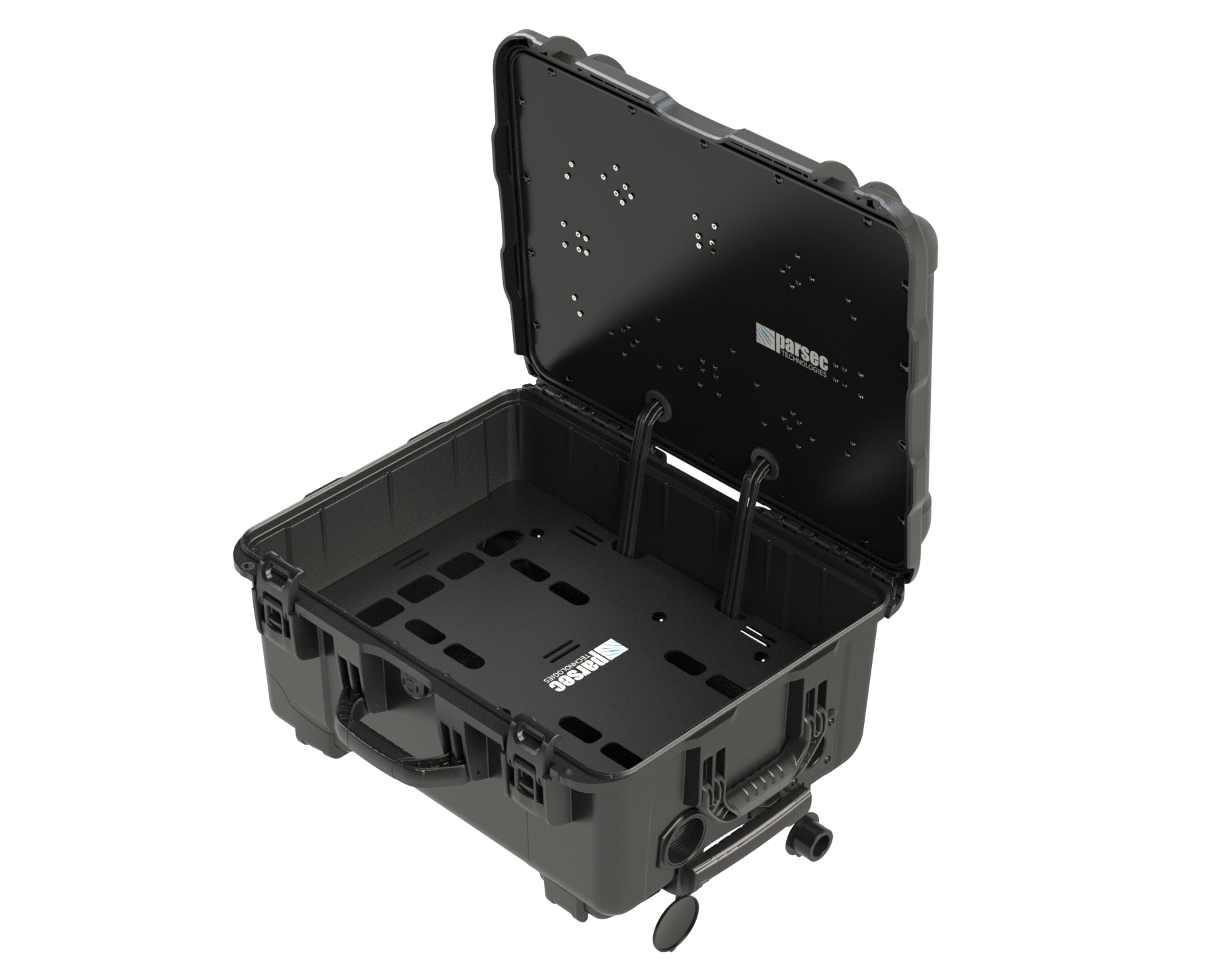

The Newfoundland case antenna is a high performance antenna built-in to the cover of a protective case.  The Newfoundland case antenna is configurable up to 13 in 1 with potential for 8X8 MIMO cellular allowing for simultaneous operation of dual SIM’s. This 5G, portable, IP67-rated case antenna is designed for high performance during adverse conditions and is portable in case of emergency. The Newfoundland is available with up to 2 sets of 4X4 MIMO cellular (primary/failover), 4X4 MIMO WIFI, and GPS. Capable of the simultaneous operation of two separate cellular modems

See Specifications for part numbers.

View Specifications

Install Guide

Additional information

Features

Cellular Frequency Range:
617– 894 MHz
1710 – 2700 MHz
3400 – 3800 MHz (CBRS)
5150 – 5925 MHz (LTE LAA)

WiFi Frequency Range:
2400–2483.5 MHz
4900 – 5900 MHz

5G
WIFI 6
High Isolation
Low Height

Applications

Mobile / Portable Communications
Emergency Communications
Wireless internet access for primary
Fail over connectivity
